What is scale ratio ?

Scale ratio is defined as the ratio of the length of any object on a model to the actual length of the same object in the real world, this can be further explained as the length of an object as a ratio on a model compared to the actual length of that object as a ratio in the real world.

The scale ratio of an object can be found by dividing each dimension of the required scale factor. eg. If you would like to apply the scale factor of 1:6 and the length of that item is 60cm, you would have to divide 60 by 6 which is equal to 10 which would be the new dimension.

An example is placed below as proof of scale ratio.

THINK ON IT !!

Why are scale drawings or models important ?

    Scale drawings/models are useful and important because they can be used to plan, visualize and adjust before having or creating a final product. Scale drawings assign each object the same scale compared to the actual object. Eg. in a scale drawing with a 1:100 scale ratio, a 100-foot-long property would be represented by a 1-foot-long property image in the scale drawing/model.

How are they useful in real world scenarios ?

    Scale drawing and models are useful in real world scenarios, since it is not always possible to draw on paper the actual size of real life objects such as the real size of a house or an airplane.

Four fields in which scale drawing or models are used.

   Four fields in which scale drawings and models are used in are fields like construction, architecture, engineering and even electronic drafting.

Why are they important in the fields listed above ?

Scale ratio/models are important in the fields listed above in view of the fact that fields like construction, agriculture and engineering the products need to be planned/designed (drawn out on paper or technically drawn) before being manufactured, the same thing is done for electronic drafting though the product is usually more detailed and complicated.

EXPLORE IT !!

Three scale drawings /models.

Dinosaur- 1cm = 6 meters

drawing of a dinosaur

Illustration of a dinosaur

Scale ratio-            1:6

References

Sites used for information

https://www.cuemath.com/geometry/scale/

https://www.mathsisfun.com/definitions/scale.html

https://en.wikipedia.org/wiki/Scale_(ratio)



Blog on Scale Ratio, by Nicholas Seepersad.

 SCALE RATIO

What is scale ratio ?

Scale ratio of a model represents the proportional ratio of a linear dimension of the same original model, to put it simply it's the ratio of the corresponding dimensions off the same feature of the original.

               Copy of book                 Drawing of book

THINK ON IT ...

Scale drawings can be used in various Fields but the main importance of it is that it can be used to plan or give a visual representation of a plan before it is executed, take blueprints for example these are used to give a layout of an infrastructure on a smaller scale, very convenient.

SOME EXAMPLES OF FIELDS THAT USE SCALE DRAWINGS INCLUDES :

The construction industry : most infrastructures use scale drawing models for their construction, this Is how they are able to get a visual representation of how the infrastructures are to look and built.

Engineering : engineers use scale drawings to draw the exact object on a much smaller scale, this is used by architects and builders to create a specific object or infrastructure.

Architecturing : most if not all architectures use blueprints which is basically a scale drawing, they use this to get a better understanding of the layout of a building or infrastructure and how it is to be built.

Movie making : productionists use props or small-scale models to plan out and design, the purpose of this is to give a visual representation on how the movie or television show made.

EXPLORE IT.

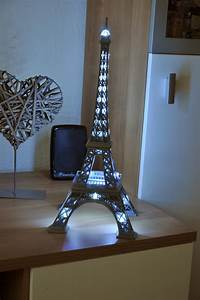

                             Picture of Eiffel tower  1.9
